When Glass-to-Glass Shower Door Hinges Make Sense

A glass-to-glass hinged shower door is a good layout choice when the door needs to attach to a fixed glass panel instead of directly to a tiled wall. This arrangement works especially well for inline enclosures, corner showers, and openings where a wall-mounted hinge would place the door awkwardly. It can create a clean frameless look, but the fixed panel must be properly supported, the bathroom must have enough outward swing clearance, and the opening should be positioned to limit escaping water.

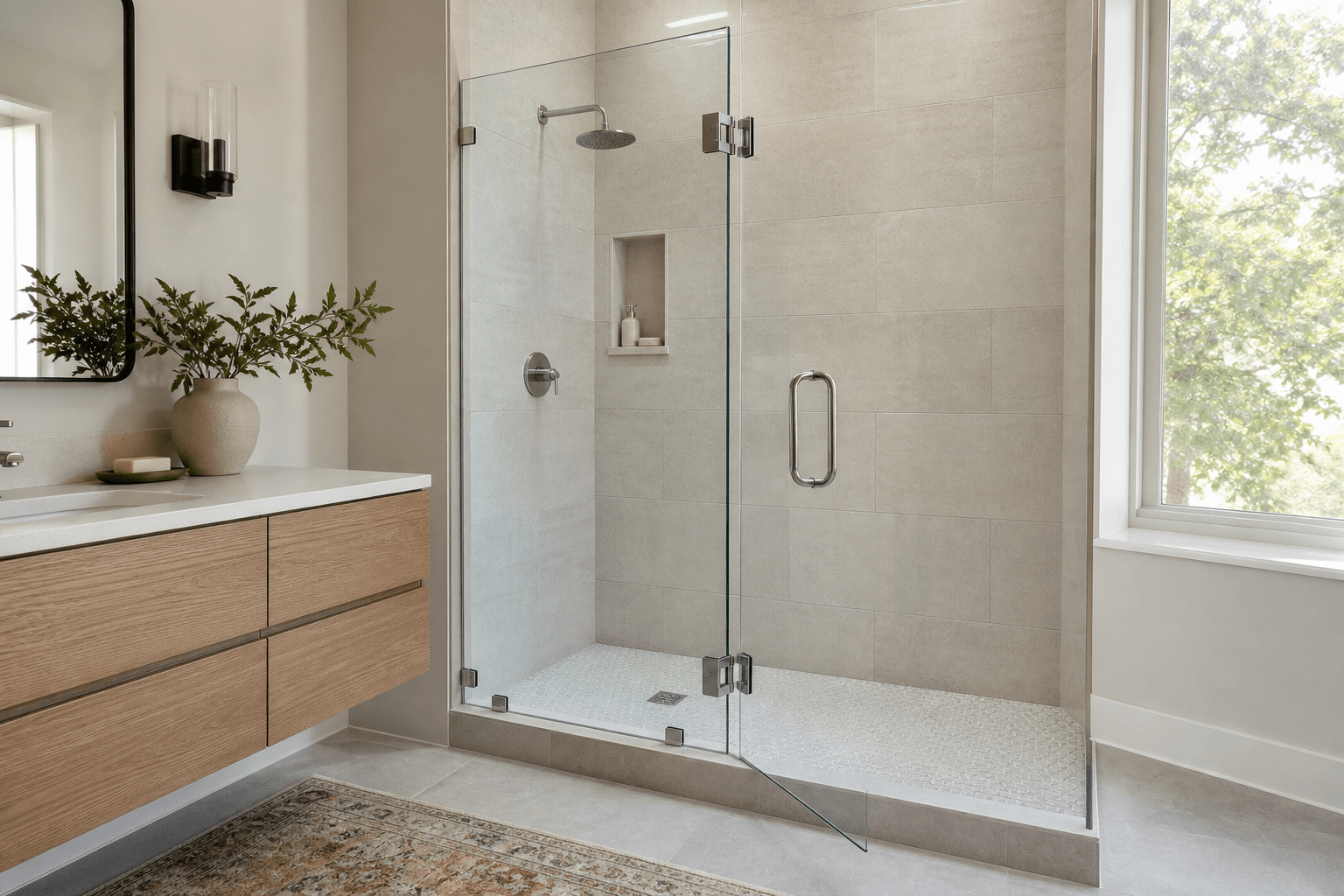

What is a glass-to-glass hinged shower door?

In this layout, hinges connect the moving shower door to an adjacent stationary glass panel. The fixed panel becomes the hinge-side support for the door, while other hardware secures and stabilizes the overall enclosure. This differs from a wall-hinged door, where the hinges fasten through tile into suitable backing or another appropriate anchoring point.

Glass-to-glass hinges are commonly used in straight inline enclosures with a door and fixed panel, as well as corner configurations where the most practical doorway does not line up with a wall. The exact hinge type, glass thickness, panel size, and stabilization method must be selected as one complete system rather than as separate decorative choices.

When does this layout work particularly well?

The strongest reason to use glass-to-glass hinges is usually geometry. They allow the doorway to sit where it provides comfortable access instead of forcing it against a wall simply because that is the easiest hinge location.

• The shower has a wide inline opening that will be divided into a fixed panel and a hinged door.
• The preferred doorway falls beside a fixed return panel rather than beside a tiled wall.
• A corner, angled, or multi-panel enclosure requires the door to operate from another piece of glass.
• Wall-mounted hinges would interfere with a vanity, toilet, towel bar, window trim, or other nearby feature.
• Moving the door away from a wall creates a more natural path into and out of the shower.
• The homeowner wants an open frameless appearance without the visible perimeter framing used by many other door systems.

For example, imagine a wide shower opening with the shower controls toward one end and a vanity close to the opposite wall. Placing a fixed panel beside the vanity and hanging the door from that panel may create better access to the controls while keeping the moving glass away from the cabinet. The correct arrangement depends on actual dimensions, not just the apparent size of the room.

Does the fixed glass panel provide enough support?

A hinged glass door places movement and leverage on the panel supporting it. That makes fixed-panel stability one of the most important planning questions. A panel that looks large enough in a drawing may still need a different attachment method, additional stabilization, or a revised door position once the glass weight and hinge forces are considered.

The supporting panel must work with the enclosure’s full hardware plan, including its connections at the wall, curb, ceiling, or adjacent glass where applicable. A very narrow panel, an unusually wide door, or limited attachment options can make another configuration more practical. These decisions should be made during field measurement and technical planning rather than after the glass has been ordered.

How much door-swing clearance is necessary?

The bathroom needs a clear, safe path for the door to open outward. Check the entire swing arc, not only the space directly in front of the opening. The glass should not collide with a vanity top, freestanding tub, toilet, door casing, wall hook, or bathroom entry door.

• There is comfortable standing room outside the shower while opening the door.
• The handle will not strike nearby walls, cabinets, or fixtures.
• The shower door and bathroom entry door cannot collide.
• A bath mat or raised floor transition will not obstruct the bottom of the door.
• The opening is wide enough for convenient entry after accounting for fixed glass and hardware.

If the room is tight, a sliding shower door may be a better option because it does not require a swing path. Sliding systems are particularly useful for wider openings and tub enclosures where a swinging panel would occupy too much floor space.

What should you expect for water containment?

A frameless glass-to-glass enclosure should not be described as completely waterproof. Functional gaps are necessary around the door, hinges, and adjoining glass. The layout, showerhead direction, curb or threshold design, and placement of body sprays all influence how much water reaches those gaps.

For better containment, the doorway should not sit directly in the strongest spray path when that can be avoided. Finished horizontal surfaces should also be designed to direct water back into the shower. Sweeps and seals may help at appropriate edges, but they cannot correct a poorly placed showerhead or a threshold that slopes toward the bathroom.

Does glass-to-glass hardware eliminate drilling into tile?

Not necessarily. Although the door hinges attach to glass, the fixed panel and other enclosure components may still require attachment to a tiled wall, curb, or another finished surface. Drilling requirements depend on the layout, hardware, wall construction, and selected glass system.

Shower Doors of Sarasota uses its DoubleSil layered sealing and anchoring process at applicable drilled shower-glass hardware attachment points. The process adds protection within the drilled opening before the anchor and fastener are installed, in addition to the visible exterior seal. It is an added precaution, but no installation method can guarantee against every possible source of water intrusion.

When might another shower-door layout be better?

Glass-to-glass hinges are useful, but they are not automatically the best choice for every frameless enclosure. A wall-hinged door may offer a simpler load path when suitable backing and a well-positioned wall are available. A sliding system can preserve floor space, while a stationary splash panel may suit a walk-in shower designed to operate without a moving door.

• The fixed panel cannot be adequately stabilized for the planned door.
• The bathroom lacks safe outward swing clearance.
• The doorway would face strong shower spray and allow excessive splash-out.
• The desired door width or location creates an awkward, heavily loaded glass configuration.
• A sliding door would provide easier access in a narrow bathroom.
• A doorless design can provide suitable access and water control with fewer moving parts.

Plan the glass after the shower finishes are complete

Final glass measurements should generally be taken after the tile, curb, thresholds, and other surfaces affecting the enclosure dimensions are finished. Shower Doors of Sarasota prefers to measure once the tile and waterproofing are fully cured, then fabricate and install the enclosure. This is especially important for glass-to-glass layouts because small changes in wall angle, curb level, or finished opening width can affect panel alignment and door operation.

Homeowners in Sarasota, Bradenton, Lakewood Ranch, Venice, and surrounding Suncoast communities can request a free project quote. Photos and approximate dimensions are helpful for an initial discussion, but an on-site measurement is what allows the hinge positions, fixed-panel support, swing path, and finished glass sizes to be planned accurately.
